101年 - 101 淡江大學轉學考工程力學#54850

科目：轉學考-工程力學 | 年份：101年 | 選擇題數：0 | 申論題數：5

試卷資訊

所屬科目：轉學考-工程力學

選擇題 (0)

申論題 (5)

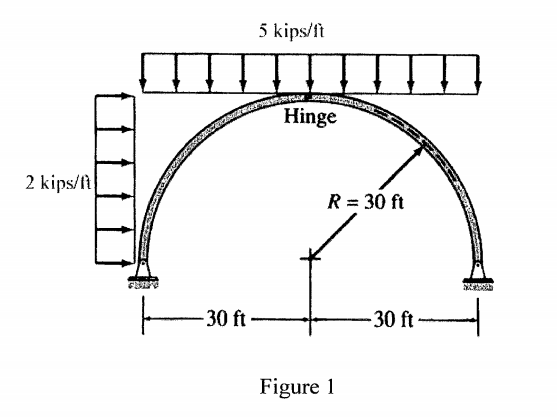

【已刪除】1. Determine the reactions for the three-hinged arch shown in Figure 1. (25%)

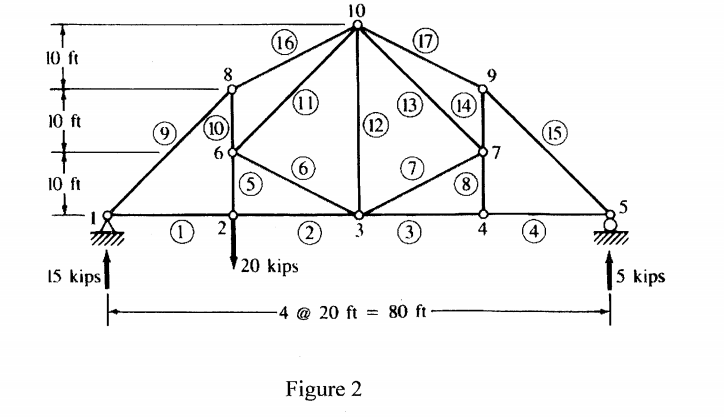

【已刪除】2. Please determine the internal forces in members 2，6, 11,10 and 16shown in Figure 2. (25%)

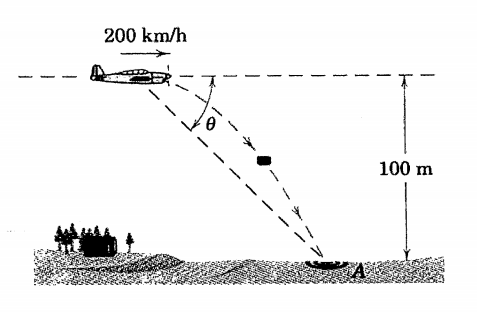

【已刪除】3. The pilot of an airplane carrying a package of mail to a remote outpost wishes to release the package at the right moment to hit the recovery location A. What angle 0 with the horizontal should be pilot’s line of sight to the target make at the instant of release? The airplane is flying horizontally at an altitude of 100m with a velocity of 200 km/h. (25%)

(a) the speed vB of the slider as it passes position B. (15%)

(b) the maximum deflection 5 of the spring. (10%)
