申論題

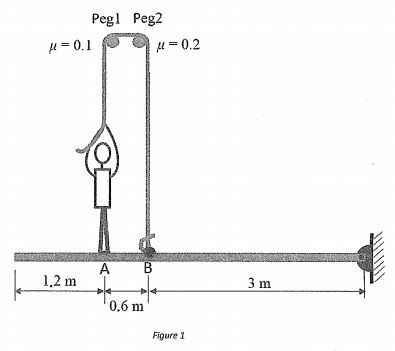

1. A 68 kg man stands on a 27 kg bar, to which a cable is fixed at point B. The cable passes over two fixed pegs with coefficients of friction as indicated. The contact angles between the rope and pegs are 90. You many treat the cable the same as you would treat a flat belt. Assume the normal force exerted by the man on the bar acts downward through point A.
