12. Four capacitors are connected as shown in the figure. How much is the total charges stored in capacitors if 6110899d02604.jpg
(A) 30 μC
(B) 45 μC
(C) 60 μC
(D) 75 μC
(E) 90 μC

答案：登入後查看
統計： A(1), B(2), C(2), D(44), E(1) #2751627

詳解 (共 2 筆)

#5006033
C=Q/V5uF = Q/15Q=75u...
(共 23 字，隱藏中）
前往觀看
2
0
#5963311

12. Four capacitors are connected as shown in the figure. How much is the total charges stored in capacitors if 6110899d02604.jpg#s-87,24

上方電容串聯 => 板距增加 => 電容下降 => 1/6+1/6 = 1/3 上方電路C = 3 uF
上下方電容並聯 => 板面積增加 => 電容上升 => 3+7 = 10 上下方加總 C = 10 uF

(667)前方電容和(10)後方電容 串聯 => C = 5 uF
C = Q/V 就可以得到 Charge 裝 75 uC

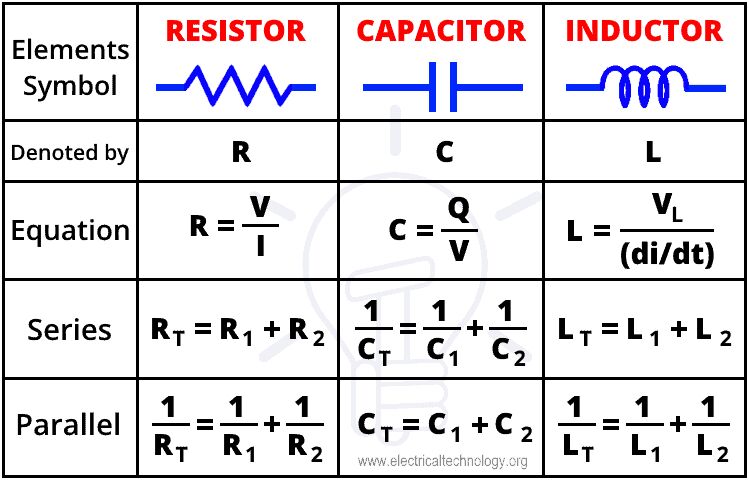

圖片來源:https://www.electricaltechnology.org/2020/10/resistance-inductance-capacitance-series-parallel-formulas.html
