22. Three sinusoidal waves of the same frequency travel along a string in positive direction of an x axis. Their amplitudes are y1 ,y1/ 2and y1/3 , and their phase constants are 0, π/2, and π, respectively. What is the phase constant of resultant wave?
(A) 30°
(B) 37°
(C) 45°
(D) 53°
(E) 60°
答案:登入後查看
統計: A(0), B(8), C(1), D(0), E(2) #2241926
統計: A(0), B(8), C(1), D(0), E(2) #2241926
詳解 (共 1 筆)
#4812217

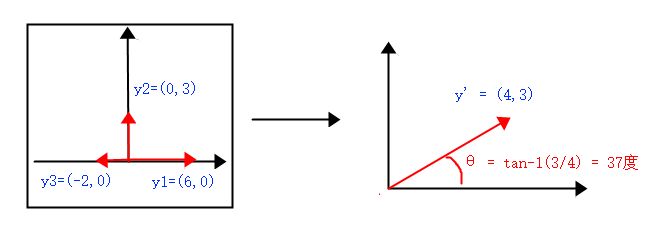

方便計算,把y1定為6,則y2 =3, y3=2,分別畫出座標向量, 並跌加起來得到 (4,3) 此時可知道新相位角為 (B) 37
