試卷:106年 - 106 國立中山大學_碩士班招生考試_電機系(戊組)、電波領域:電磁學#110197
科目:中山◆電機◆電磁學
年份:106年
排序:0

題組內容

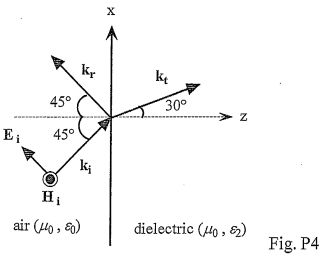

4.(20%) A uniform plane wave in air is incident on a lossless dielectric material at a 45° angle, as shown in Fig. P4. The transmitted wave propagates in a 300 direction with) respect to the normal. The frequency is 300 MHz.62f372f99c299.jpg

申論題內容

(b)(7%) Find the reflection coefficient and transmission coefficient.
