題組內容

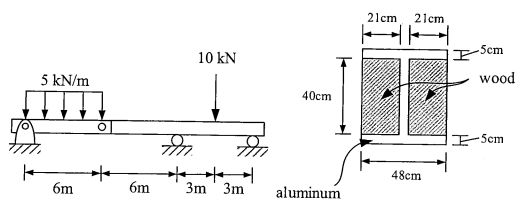

一、Acontinuous beam composited by aluminum and wood is subjected to a point loading and distributed loading as shown below. Please answer the following questions.

(b) Determine the maximum normal stresses of aluminum and wood, separately. Note that the aluminum and wood are bonded completely, the Young's modulus of61cabf461e1e0.jpg(15%)
