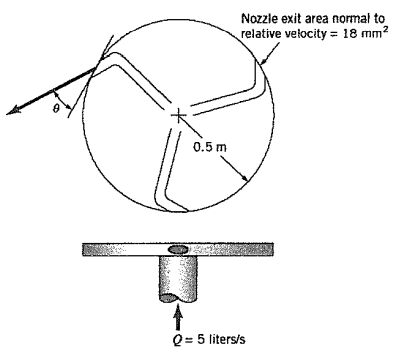

5. Five liters per second of water enters the rotor shown below along the axis of rotation. The cross-sectional area of each of the three nozzle exists normal to the relative velocity is 18 mm². How fast will the rotor spin steadily if the resisting torque is reduced to zero, and

 (a) θ = 0°,
