試卷:110年 - 110 國立臺灣大學_碩士班招生考試_部分系所:流體力學(F)#100938
科目:研究所、轉學考(插大)-流體力學
年份:110年
排序:10

題組內容

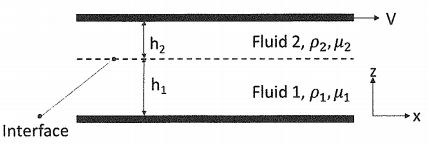

6. Consider a modified form of Couette flow in which there are two immiscible fluids sandwiched between two infinitely long and wide, parallel flat plates. The flow is steady, incompressible, parallel, and Iaminar. The top plate moves at velocity V to the right, and the bottom plate is stationary. Gravity acts in the -z direction (downward), There is no forced pressure gradient pushing the fluids through the channel-the flow is set up solely by viscous effects created by the moving upper plate. You may ignore surface tension effects and assume that the interface is horizontal. The pressure at the bottom of the flow (z = 0) is equal to P0.

申論題內容

(a) Solve for the velocity field.
