110年 - 110 國立臺灣大學_碩士班招生考試_工程科學及海洋工程學研究所丙組:控制系統(B)#100939
>
題組內容

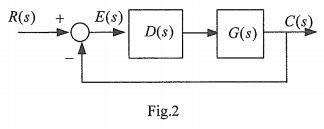

2. A root locus problem is shown in Fig.2 with plan
(d)Find the range of K for stability in (c). (4%)
其他申論題
(b) The control performance in Fig.1(a) can be improved by the system in Fig. 1(b) with. Please design Ki and K2 to achieve 25% s(s+1) overshoot and settling time 0.2 sec. (15%)
#423001
(a) Sketch the root locus as D(s)-K, including asymptotes and breakaway points. (7%)
#423002
(b) Find the range of K for stability in (a). (4%)
#423003
(c) In order to improve the stability, a zero is added in the controller as D(s)= K(s + a) to make the root locus cross the jw-axis at ±j5.5. Please find the value of a, and sketch the new root locus.(10%)
#423004
(a) Please derive and sketch the Nyquist plot. (15%.)
#423006
(b) Find the range of K for stability by Nyquist stability criterion. (10%.)
#423007
(a) Please derive the state space equation of the closed-loop control system. (10%)
#423008
(b)Please solve the gain Ka and K, for the closed-loop poles located at-2 ± j2.(15%)
#423009
1. (15%) A magnetic field is given in the xz-plane by, Wb/m2. Consider a regid square loop situated in the xz-plane with its vertices at (x, 0, 1), (x+1,0, 1), (x+1,0, 2), and (x, 0, 2). Find the emf induced around the loop in the sense defined by connecting the above points in succession.
#423010
2. (15%) Charge is distributed with uniform density p0, C/m3 in the spherical region a＜s ＜2a. Find the electric displacement field everywhere.
